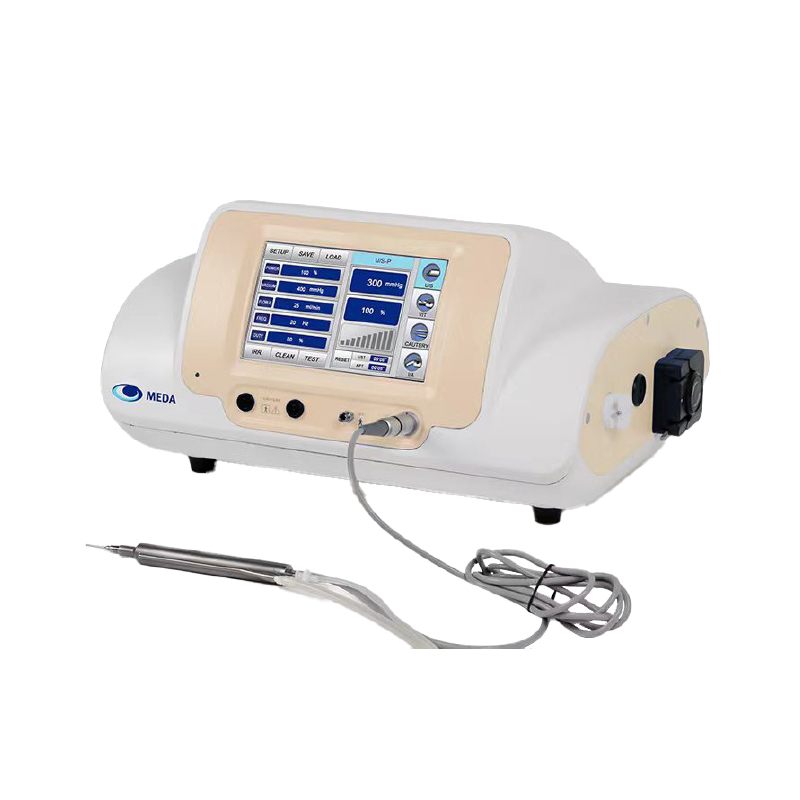

MD-400 Veterinary Cryotherapy Instrument
Advanced Solution for Veterinary Ophthalmology
The MD-400 Veterinary Cryotherapy Instrument is specifically designed for animal ophthalmology, primarily used in cataract treatment. This cutting-edge Veterinary Cryotherapy Instrument utilizes ultrasound technology to break up and aspirate the cloudy lens, ensuring minimal surgical trauma and rapid recovery.
Features
• 7” Color LCD Touch Screen – Provides intuitive operation and a user-friendly interface
• Cold Phaco Micropulse Technology – Enhances efficiency and safety in cataract surgery
• 10 Preset Work Parameters – Streamlines surgical procedures for improved precision
• Automatic Self-Test Function – Detects blockages, leaks, and system tubing status in real-time
• Sensitive Anterior Chamber Protection – Prevents chamber instability and sudden pressure surges
• Multi-Functional Veterinary Cryotherapy Instrument – Integrated phacoemulsification, vitrectomy, and cautery capabilities
Technical Specifications
Phacoemulsification System
• Ultrasound Frequency: 35KHz
• Operating Modes:
•Continuous Mode: Constant phaco power, adjustable (0-100%)
• Pulse Mode: Adjustable pulse frequency (1-99Hz) and duty cycle
• Linear Mode: Phaco power adjusts linearly via footswitch (0-100%)
• Burst Mode: Interval time: 1.5-0s, working time: 5-100ms
Irrigation & Aspiration System
•Pump Type: Peristaltic pump
• Maximum Flow Rate: 50ml/min
• Maximum Vacuum: 0-600mmHg
• Reflux Flow Rate: 20ml/min
Vitrectomy System
•Cutting Mechanism: Air pump-driven
• Cutting Frequency:
•Single-Cut Mode: 600 cuts/min
•Adjustable Range: 20-600 cuts/min
• Maximum Vacuum: 600mmH
• Maximum Flow Rate: 50ml/min
Cautery System
•Maximum Power Output: 10W ± 20% (200Ω load)
• Bipolar Cautery: Adjustable power setting (0-100%)
