Functions
The Handheld Slit Lamp BM-SL-04 is a portable veterinary ophthalmology microscope that projects high-intensity slit light onto transparent ocular structures (e.g., cornea, crystalline lens) to create optical cross-sections. Its high-brightness warm LED light source enhances tissue scattering details for magnified stereomicroscopic observation, enabling precise detection of microscopic abnormalities. Designed for durability and extended lifespan, this tool is optimized for routine veterinary ophthalmic examinations.
Features
Superior Optical Quality
Professional optical design delivers exceptional observation performance, especially suitable for veterinary ophthalmic screening.

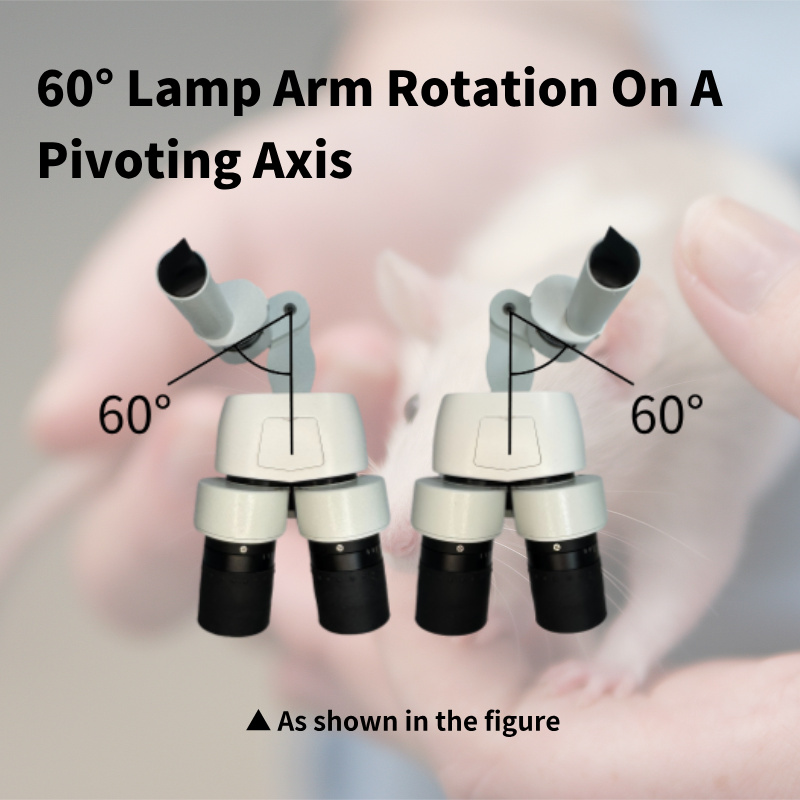

Extra-Large Arm Rotation Angle
Maximum rotation angle up to 60°, supports all illumination methods and adapts to all scenarios; pivot rotation design ensures smoother arm movement.
Warm LED Illumination
The BM-SL-04 slit lamp utilizes warm-colored light optimized for extended observation periods, minimizing eye strain for both operators and animals.
Extra-Large Eyepiece Field of View
The 16mm wide eyepiece field of view allows for simultaneous observation of more ocular tissues, enhancing comfort and ease of use while reducing eye strain.

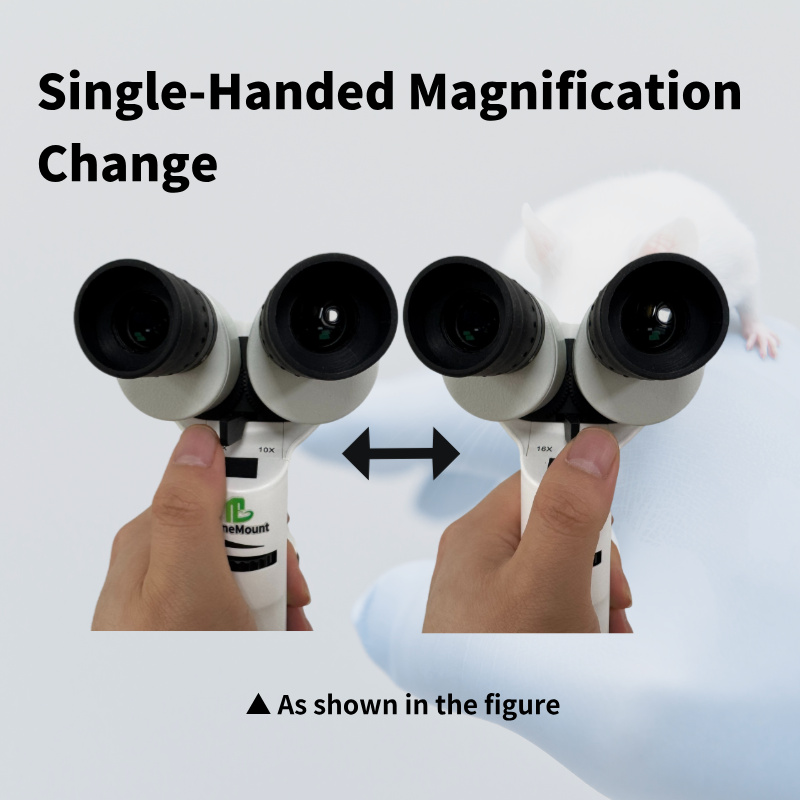

One-Handed Magnification Switching
The telescopic objective lens enables one-handed switching between 10x and 16x magnifications, allowing the operator to stabilize the animal’s head with one hand while holding the slit lamp with the other. Locate lesions at lower magnification, then switch to higher magnification for detailed examination – optimizing workflow efficiency.
Technical specifications:
Total Magnification: 10x, 16x
Slit Width (mm): 0.15×12, 0.5×12, 0.8×12, 1.6×12, φ12, □1mm
Field of View: 10X = 16mm, 16X = 10mm
Slit Angle: ± 60°
Filters: Red-free filter, cobalt blue filter, neutral density filter
Work Distance (mm): 55mm to 72mm
Diopter Adjustment Range: -7D to +7D
Product Accessories
- Charger: Li-ion Battery Charger
- Charger Output: DC 12V
- Charger Input Power: ≤24VA
- Power Adapter (Charger Power Supply): Certified adapter with input voltage of 220V AC (50Hz) and output voltage of 12V DC.

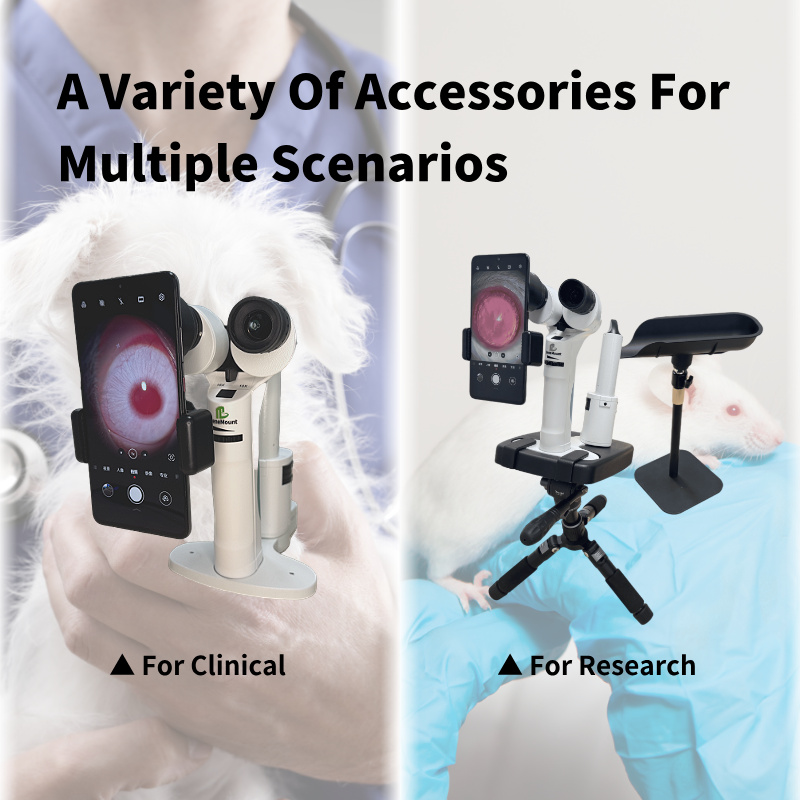

Optional Accessories

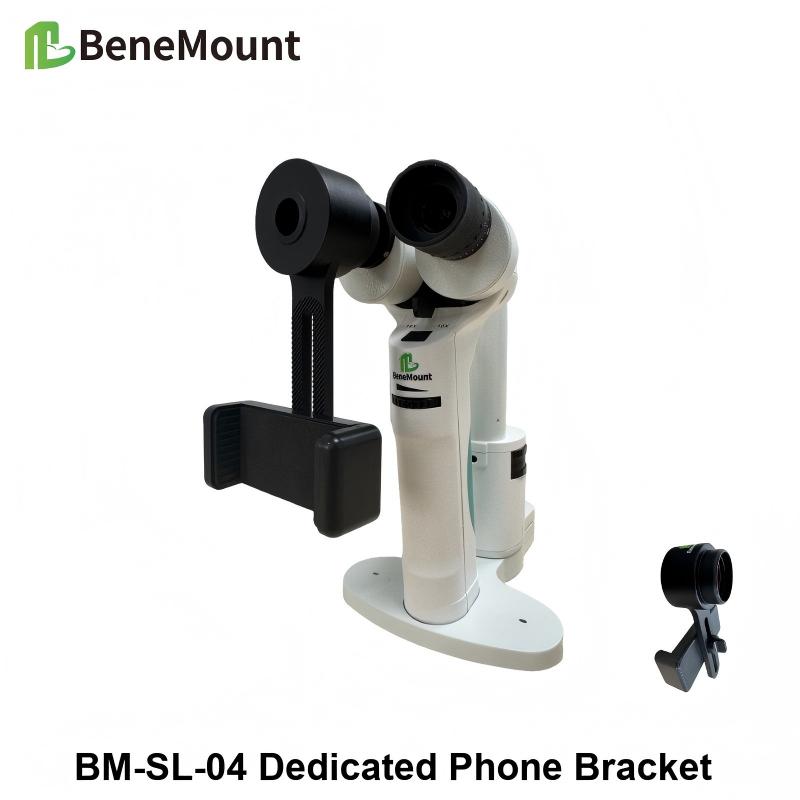

- Smartphone Mount: Designed for BM-SL-04 eyepiece, featuring quick-attach/detach design for effortless photo/video documentation.

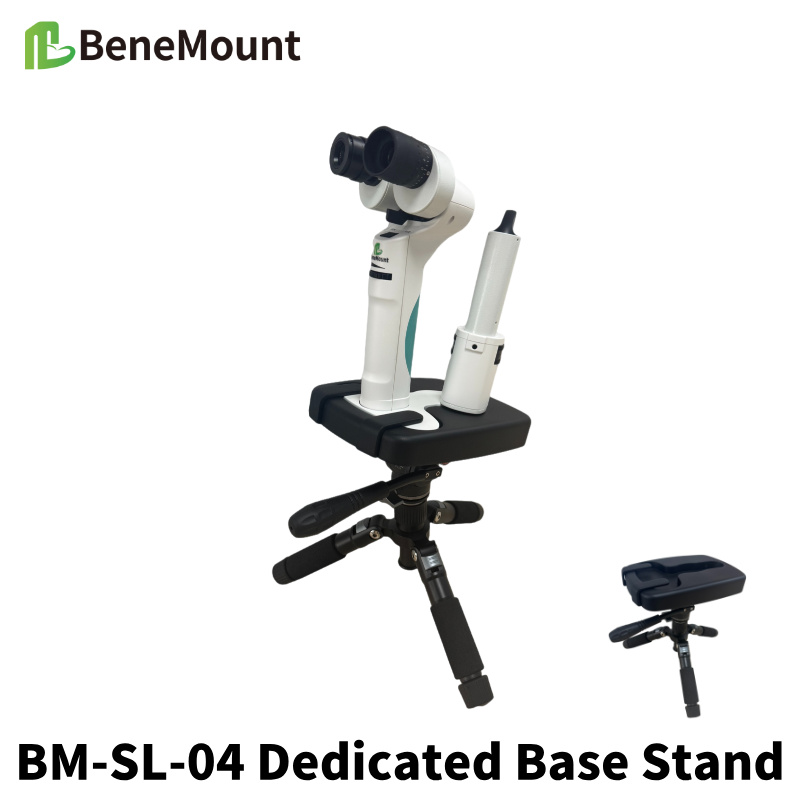

- Base Bracket: Compatible with BM-SL-04 base, supports height adjustment (15-30cm), 360° rotation, and locking; ideal for multi-animal continuous observation.

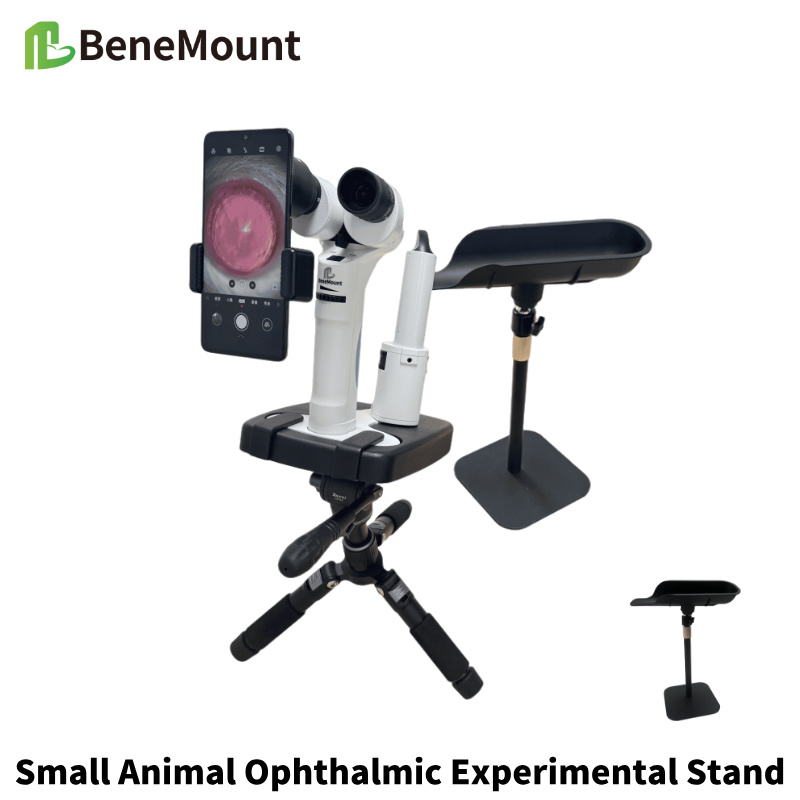

- Small Animal Ophthalmic Lab Bracket:
a. Precision Adjustment System: Vertical/horizontal micro-adjustment ensures stable positioning and precise alignment of ophthalmic equipment with the eye area.
b. Lockable Reinforced Structure: Robust, wobble-free design guarantees stability during procedures.
c. Detachable Design: Modular assembly enables portability and rapid setup for mobile labs or multi-location workflows.
