Functions

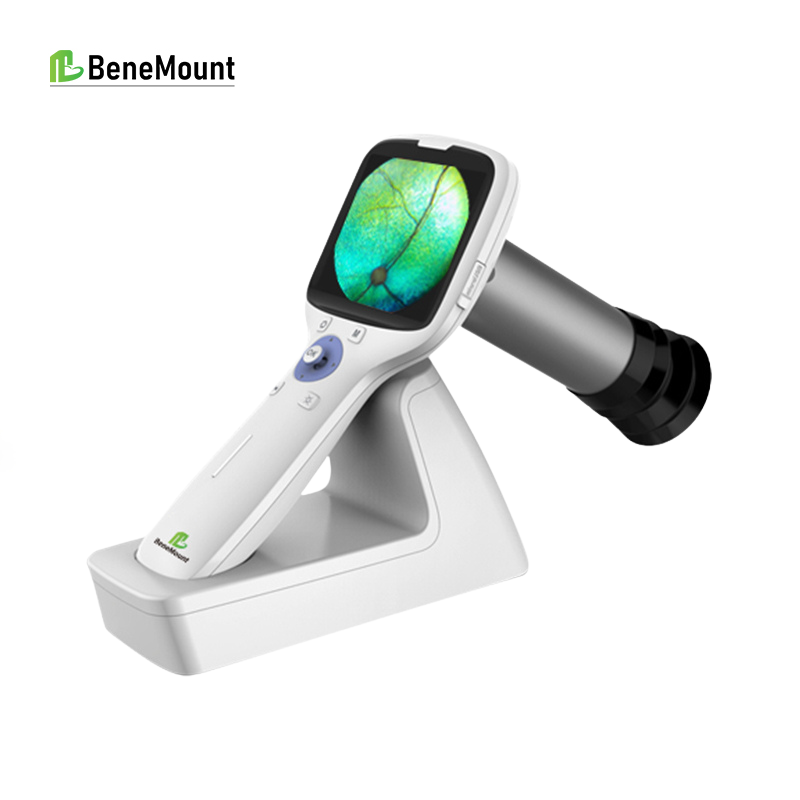

The BeneMount Portable Fundus Camera BM-FC-01 is designed for observing, capturing, and acquiring retinal images of animals, providing veterinarians with essential diagnostic information for retinal diseases. This compact and convenient device is ideal for on-site and mobile diagnostics, enabling veterinarians to easily obtain high-quality retinal images of animals in various environments.
Photography Procedure:
- Align the lens with the animal’s eye at approximately 30mm distance. Rotate the adjustment knob until the image is clear.
- Rest the lens on the web between the thumb and index finger of one hand.
- Use the hand’s web as a support to maintain the lens’s horizontal position.
- Carefully move the device forward/backward until the entire fundus is displayed on the screen.
- Fine-tune by rotating the focus wheel, then press the OK button to capture a clear fundus image.
Technical specifications:
Dimensions: 30×9×19 cm³
Weight: 450g
Field of View Angle: 40±2°
Diopter Compensation Range: -20D~+20D
Focusing Method: Manual
Image Resolution: 1920×1080 Pixels
Infrared LED Peak Wavelength: 810nm±20nm
Flash Color Temperature: 4500K≤TC≤6700K
LCD Display: 3.5’’ FULL Color TFT-LCD
Image Format: JPEG (Photograph)
Storage: Micro SD Card (Max 16G)
Power: 220V AC/50Hz; 3.6V Li Battery (3400mAh)
Operating Time: 3 hours (at 2.5W)
Output Format: JPEG (Photograph)
Working Distance: 31±2mm
Minimum Pupil Diameter: 2.5mm
Resolution: Center: ≥60 lp/mm, 1/2 Field: ≥40 lp/mm, Edge: ≥25 lp/mm
Operation Mode: Continuous
Liquid Ingress Protection: IPX0
Device Classification: Class II, Internal Power Source
Electric Shock Protection Level: B
Input Power: 20VA
Safety Classification for Use in Environments with Flammable Anesthetic Gas Mixtures: Device is prohibited in environments containing flammable anesthetic gases mixed with air, oxygen, or nitrous oxide.
BeneMount Portable Fundus Camera BM-FC-01 made in China
