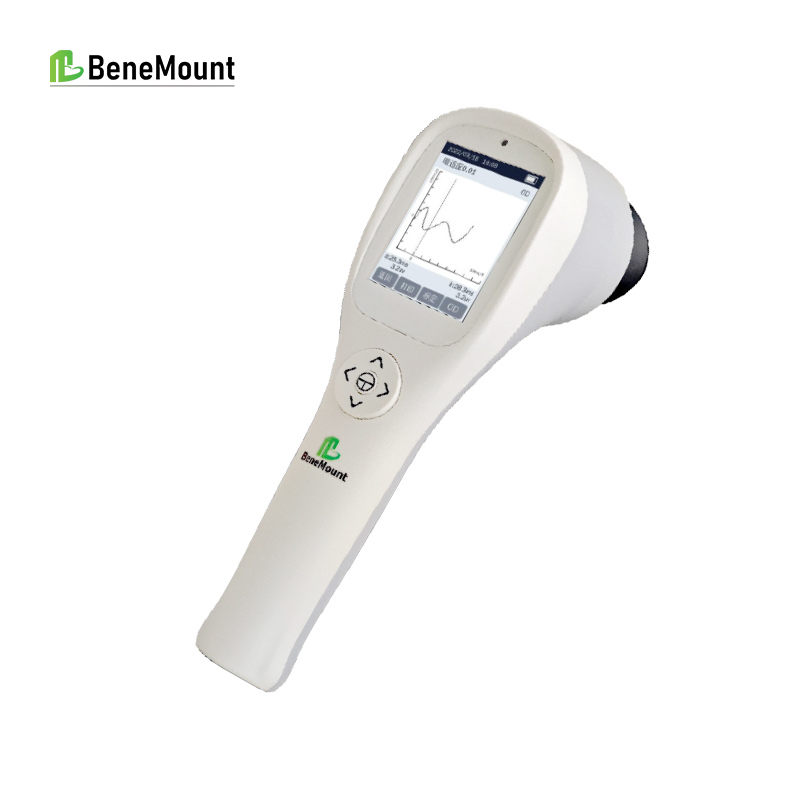

BeneMount Handheld Animal Visual Electrophysiological Device BM-ERG-01
Can be used for animal visual electrophysiology related examinations. Examines corresponding animal visual function, retinal function, etc. Can be used for various visual electrophysiology examinations in rats, mice, cats, dogs, horses, and monkeys, including flash ERG, flicker ERG, FVEP.
Product Features:
BeneMount Handheld Animal Visual Electrophysiological Device BM-ERG-01 Multi-species applicability
- Applicable to various animals, including cats, dogs, rats and mice, horses, monkeys, meeting the needs of animal hospitals and research laboratories of different sizes. Comprehensive functions
- Supports multiple visual electrophysiology examinations, including flash ERG, flicker ERG, FVEP. Convenient operation
- Handheld design makes the device easy to carry and operate, suitable for use in different scenarios;
- Simple device setup, easy to get started, can quickly obtain examination results, improving clinical and experimental efficiency. Data management
- Examination results can be quickly exported, supporting common formats such as PDF, JPG, facilitating saving, sharing, and report generation.
- Convenient for analysis and archiving.
| Parameter | Details |
|---|---|
| Flash | Dark adaptation: 0.01, 3.0, 3.0 OPS, 10.0; Light adaptation: 3.0, flashing |
| Flicker | DR, 4.0 Td·s, 4.0 Td·s, 32.0 Td·s |
| Common Mode Rejection Ratio | > 100 dB |
| Gain Range | 1k, 2k, 5k, 10k, 20k, 50k, 100k |
| Low-frequency Cutoff | 0.1Hz, 1Hz, 7.5Hz, 100Hz |
| High-frequency Cutoff | 75Hz, 100Hz, 300Hz |
| Waveform Capture Time | 100-500 ms |
| White Background Illuminance | 0, 30, 75, 100 (cd/m²) |
| Flash Intensity | 0.01, 0.025, 3, 7.5, 10, 25 (cd·s/m²) |
| Background Light Color | White, Red, Blue, Green |
| Flash Duration | ≤ 5 milliseconds |
| Stimulation Frequency | Single pulse: 0.05Hz, 0.1Hz, 0.5Hz; Sinusoidal stimulus: 30Hz |
| Control | Touchscreen & Button Control |
| Display | 2.8-inch, 320×240 resolution |
